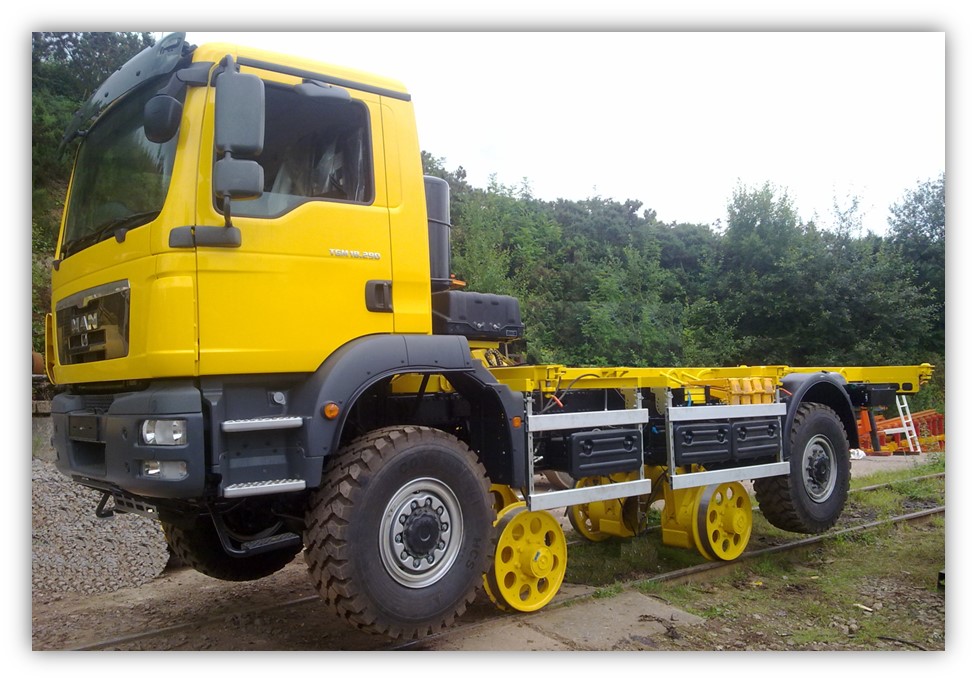

MAN TGM 4×4 18 Tonne GVW 20′ ISO Intermodal Lorry

MAN TGM 4×4 available with or without optional demountable modules

This RRV MPV is a versatile module carrier for the road and railway.

Our rail axles, drive systems and twist lock subframe only uses 2 tonnes of the available payload allowing an 8 tonne ISO 20′ module or 2x 10′ modules to be carried and moved on the highway and even heavier modules on the railway.

• 18t 4×4 military spec chassis
• 8t load capacity
• Hydrostatic driven 4×4 Rail Gear, with all wheel braking
• Rail axle float damping and locking system
• Custom ISO20’ + Twist Lock Demount System
• Full complement of Auxiliary Hydraulic options
• 12 tonne Rail Trailer Towing Capability

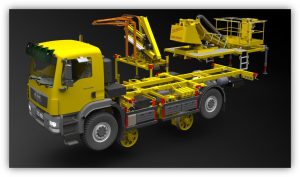

• Modular options:
• Rail-Reach III MEWP
• Crane
• Concrete Mixer
• Vacuum Tanker
• Pantograph

Please contact is with your requirements for a quotation and a full technical specification.
